BAOT Metal Ceramic Master Kit
- Cod produs: 403855
- Disponibilitate: In stoc
-
1,398.00 lei
- (Fara TVA: 1,174.79 lei)

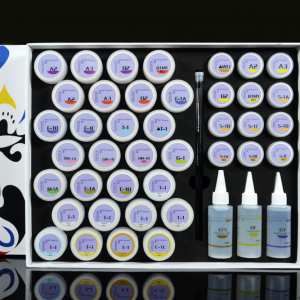

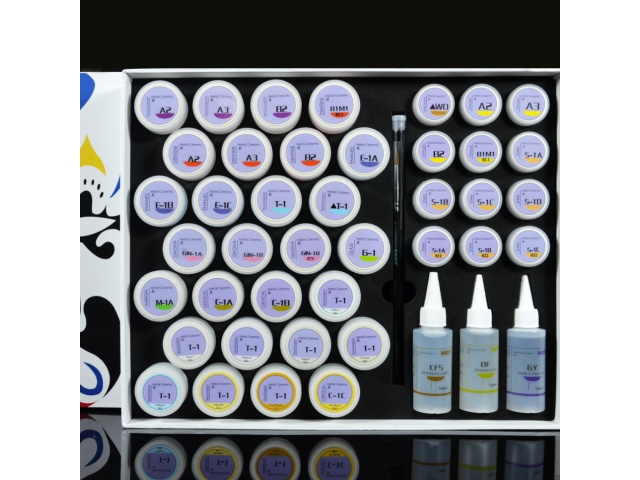

PFM Master Kit Metal Ceramic Dental Porcelain Powder
The dental metal porcelain PFM Master Kit is in the series of BAOT JC dental ceramic trial kits.
In addition to the contents of the other sets in the same series, there is more color of different types of ceramics in the Master Kit, which can satisfy the aesthetic choices of the technicians for various colors and special effects.
Master Kit
Opaque: A2/A3/B2/B1M1 BL1 (5g/pc)
JC Bond: BOND (7g/pc)
Stain: S-1A/B/C/D/A 011/B 022/C 032 (3g/pc)
Opacious Dentine: A2/A3/B2 (15g/pc)
Dentine: A2/A3/B2/B1M1 BL1 (15g/pc)
Enamel: E-1A/B/C (15g/pc)
Transparent: T-1/▲T-1 (15g/pc)
Gingiva: GIN-1A/B/B 073 (15g/pc)
Glaze: G-1 (15g/pc)
Cervical: C-1A/B (15g/pc)
Margin: M-1A (15g/pc)
T Blue 1: T-1 061 (15g/pc)
Opal 1: T-1 062 (15g/pc)
Natural: T-1 063 (15g/pc)
Opal 3: T-1 064 (15g/pc)
Creamy: T-1 065 (15g/pc)
T Blue 2: T-1 068 (15g/pc)
Aureola: T-1 071 (15g/pc)
Sun Bright: T-1 075 (15g/pc)
Occlusal: C-1C 003 (15g/pc)
Modeling Liquid: CFS (50ml/pc)
Glaze & Stain Liquid: GY (50ml/pc)
Opaque Liquid: OF (50ml/pc)
Brush-No.7
The chemical composition of BAOT dental ceramic/porcelain powder is silicon oxide, aluminum oxide, potassium oxide, sodium oxide, zirconia, calcium oxide, boron oxide, etc. It is mainly introduced from potassium feldspar, and through catalysis, it crystallizes repeatedly to form garnet crystals, which have good biocompatibility, chemical stability, strength, and hardness suitable for oral structure and function.
BAOT dental ceramic/porcelain powder is easy to build up, which is suitable for every dental technician. 16+26 VITA® classic shades satisfy your basic needs, while we also have the EFFECT series to meet more advanced aesthetic needs. All denture factories, dental labs, or individual orders are welcome.
PFM/Metal Porcelain Dental Porcelain Powder Dental Ceramics Master Kit, factory direct sale
| Product Name | Metal Ceramic PFM Matser Kit |
| CTE*(10-6 · K-1) | 9.5-10.5 |
| Glass Transition (°C) | 590 |
| Flexural Strength (MPa) | 106 |
| Chemical Solubility(μg·cm-2) | 20 |
| Shades | Opaque: A2/A3/B2/B1M1 BL1 (5g/pc) JC Bond: BOND (7g/pc) Opacious Dentine: A2/A3/B2 (15g/pc) Dentine: A2/A3/B2/B1M1 BL1 (15g/pc) Enamel: E-1A/B/C (15g/pc) Transparent: T-1/▲T-1 (15g/pc) Gingiva: GIN-1A/B/B 073 (15g/pc) Glaze: G-1 (15g/pc) Cervical: C-1A/B (15g/pc) Margin: M-1A (15g/pc) T Blue 1: T-1 061 (15g/pc) Opal 1: T-1 062 (15g/pc) Natural: T-1 063 (15g/pc) Opal 3: T-1 064 (15g/pc) Creamy: T-1 065 (15g/pc) T Blue 2: T-1 068 (15g/pc) Aureola: T-1 071 (15g/pc) Sun Bright: T-1 075 (15g/pc) Occlusal: C-1C 003 (15g/pc) Stain: S-1A/B/C/D/A 011/B 022/C 032 (3g/pc) Modeling Liquid: CFS (50ml/pc) Glaze & Stain Liquid: GY (50ml/pc) Opaque Liquid: OF (50ml/pc) Brush-No.7 |
*CTE(Coefficient of thermal expansion)
Firing Parameters for Carlibrated Furnaces
| Condition | Firing | |||
| Liner | Body* | Add on | Glaze & Stain | |
| Drying temp (℃) | 500 | 500 | 500 | 500 |
| Drying time (min) | 2 | 3 | 2 | 2 |
| Heating time (℃) | 2 | 3 | 2 | 2 |
| Heating rate (℃/min) | 50 | 50 | 50 | 50 |
| Firing temp (℃) | 960 | 920 | 910 | 890 |
| Holding time (min) | 1 | 1 | 1 | 1 |
| Cooling time (min) | 4 | 4 | 4 | 4 |
| Cooling temp (℃) | 550 | 550 | 550 | 550 |
| Vacuum start (℃) | 500 | 500 | 500 | - |
| Vacuum end (℃) | 960 | 920 | 910 | - |
NOTE:
- *"Body" includes Cervical, Opacious Dentin, Dentin, Enamel, Transparent, Effect, Gingiva.
- Our recommendation for firing temperature is based on numerous tests.
- These firing parameters may be adjusted according to the peculiarities of different furnaces.
- It is essential to test firing before production.
- Please refer to "Instruction for Use" for details.
PFM Dental Porcelain Powder Dental Ceramics Master Kit
