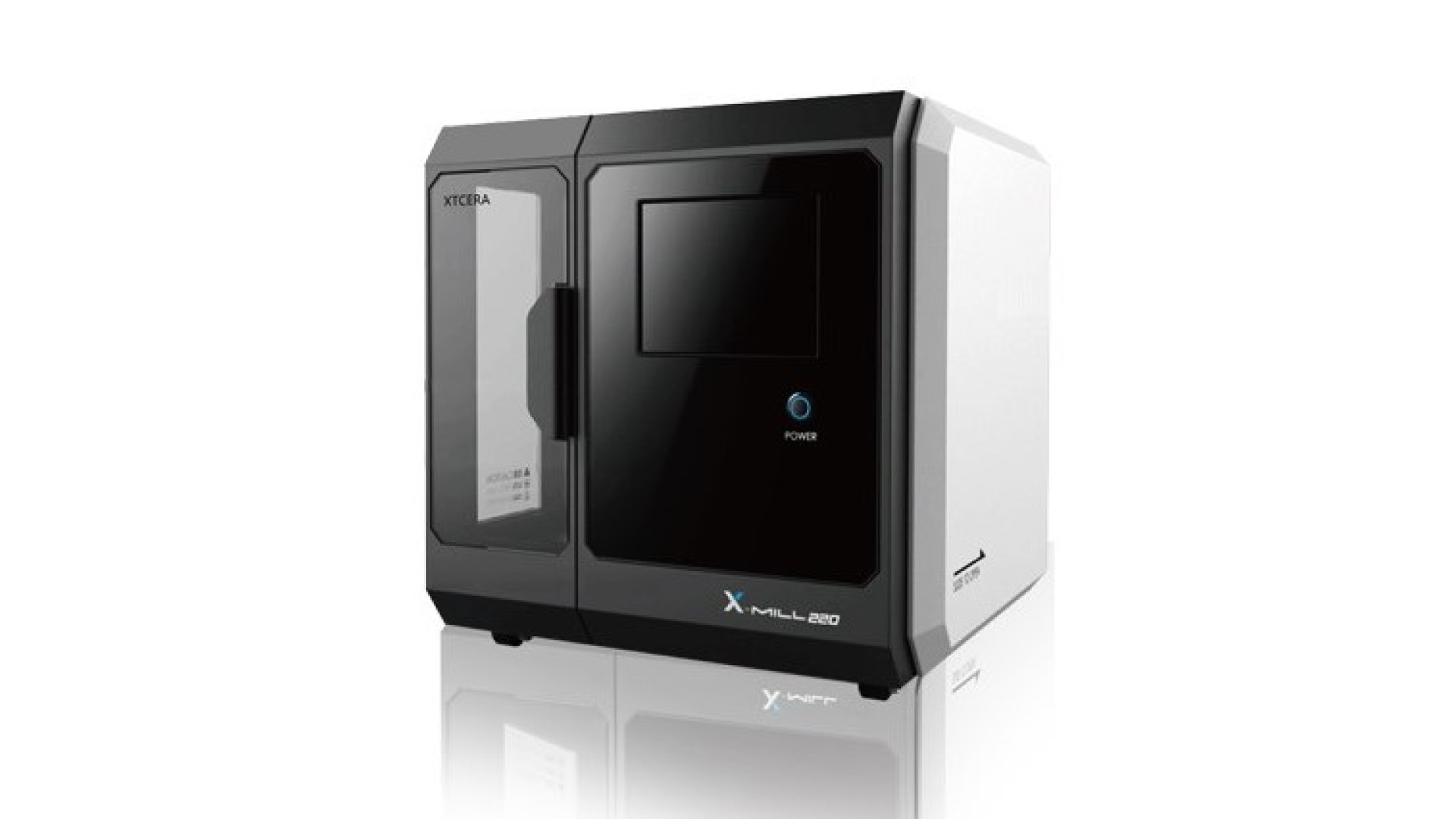

X-220 milling machine was developed by Shenzhen Xiang Tong Medical Techology Co., LTD. Four axis dental carving and milling machine,integrated design, making work regionalization simplicity;
Dry milling machine,especially the development of control system.
Fitting with X-soform operation platform and supporting the use of digital denture;
Horizontal structure design, the key control unit is made of high quality imported original, screw, guide rail, such as components and maintenance-free design, reducing the equipment for professional maintenance problems.
High speed, high precision machining, wax takes3-4 min/pc, zirconium takes 8-10 min/pc.



Dimension：730*720*620(mm)

Net Weight：Approximately 150kg

Input Voltage：Single-Phase 220V 50/60HZ

Max Power：2.0KW

Spindle Power:1.2kw

Axis quantity：4

Milling Range：XYZ：125/130/80mm A:360°

Milling Mode：Dry milling

Max speed：36，000rpm

Max feeding speed：6000mm/min

Bur Capacity：3

Bur Changing：Automatic

Cooling：water cooling

Materials：Zirconia、Wax、PMMA

 Milling Time: zirconia：8 mins wax：3mins
